Breconcherry - Products

As a specialist in hygienic applications our extensive range of cleaners has a proven track record in providing effective cleaning solutions for Food, Beverage, Dairy, Pharmaceutical, Fine chemical and Personal health care markets and other industries. Our products are at the heart of every successful process offering economical and flexible service orientated solutions that help to maintain the highest quality standards in modern production processes.

Children categories

Orbital Cleaners

Breconcherry orbital cleaning devices work on the basis of two rotating axes, one horizontal and one vertical. A number of solid stream impact jets are set on a predetermined path creating an ever increasing 3D matrix inside a vessel. This produces a focused and powerful mechanical cleaning power allowing fast and effective cleaning solutions while reducing water, chemical and energy requirements.

Depending on the type, the cleaners have two or four nozzles. The nozzles have an inside diameter of up to 12 mm in accordance with application requirements. The horizontal and vertical rotary movement is produced by a turbine gear unit, driven by the cleaning medium, or by a separate drive such as an electric or pneumatic motor. The continuous rotation in two planes produces a finely meshed, net-like pattern of cleaning jets on the inside wall of the tank. At the end of a full cycle, each and every point of the tank has been directly subjected to mechanical impact from a strong jet. A complete cycle typically takes between 3 and 9 minutes. In practice, orbital cleaners generally operate at pressures of 4 to 8 bar and can easily cover an effective horizontal cleaning diameter of up to 33 meters, depending on the nozzle diameter used.

This type of cleaner is especially recommended for vessels and tanks with complex internal fittings, and for products that are difficult to clean. Compared with a spray ball, the cleaning medium consumption is up to 70% less.

Features of orbital Cleaners:

  • Hygienic design
  • Ball bearing free (exception TMC)
  • Slim, compact design
  • Intensive cleaning with targeted jets
  • Long life
  • Easy-to-maintain
  • Driven by the cleaning medium (exception TMC)
  • Low number of components (orbital cleaners Typhoon, Tempest, Tornado all use the same spare parts)
  • Reproducible cleaning by monitoring of the rotation with sensor SMW 100 or Veri-Clean (optional)
  • Orbital cleaners work on the basis of two rotating axes, one horizontal and one vertical.

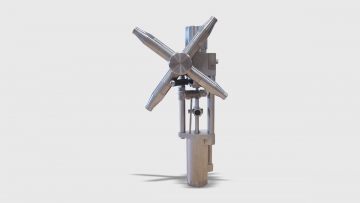

Index Cleaners

The Index Cleaners of Breconcherry provide high impact cleaning through their unique piston operated indexing mechanism. The advantages of this type of cleaner are that indexing function operates slowly and so efficiently that a larger amount of energy can be transferred to the cleaning jets than with any other cleaner in its class.

Index cleaners are very versatile with versions capable from 4 to 90 bar together with options for 180° cleaning patterns. Only 5% of the cleaning liquid drives the mechanism, 95% passes directly to the nozzles, maximising the impingement. With no high speed turbines and complex gear mechanisms, there is minimal wear and servicing. The indexing mechanism provides an evenly spaced wash pattern. The nozzles of these cleaners are designed to give effective surface coverage with high impingement. Depending on the type, Index Cleaners have two, three or four nozzles. They are also known as our Fury range.

Features of Index Cleaners:

  • Slim, compact hygienic self-cleaning design with small insertion sizes
  • Effective cleaning of square or flat vessels
  • High performance jets produce intensive cleaning
  • Extended service intervals through slow speed indexing
  • High performance cleaning of open topped vessels
  • No additional drive required

Rotating Cleaners

Rotating cleaners are characterized by a rotation around one axis. The cleaning effect can be produced by a slowly rotation using targeted flat or round jets or by fast rotation creating fast moving high impact droplets.

Static Cleaners

Static cleaners are the main components for cleaning tanks and vessels, e.g. storage tanks, CIP tanks, milk collecting trucks. We supply a variety of sizes, flow rates and configurations for a broad scope of cleaning jobs.



Retracting Cleaners

Its design makes the In-Line sprayer IS 25 in particular suitable for the cleaning of tanks with moving components, such as straight-arm paddle agitators and scrapers.



Accessories

Accessories like cleaning lances, dirt arrester, protection cage for orbital cleaners, mobile & stationary trestle for cleaners are available for our cleaning devices.
